April 2024

Project Date

Steel Structure

Apply on

13,000

Surface Area (m2)

1,120

Hours of Work

Nullifire SC802, SC804

Material

About

MSM Logistic LLC

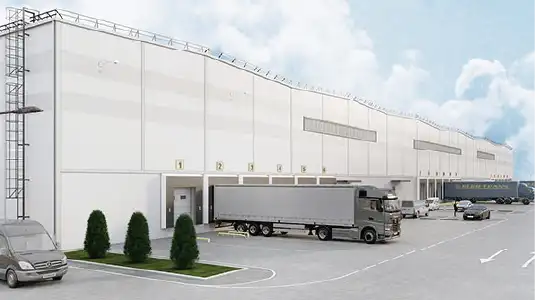

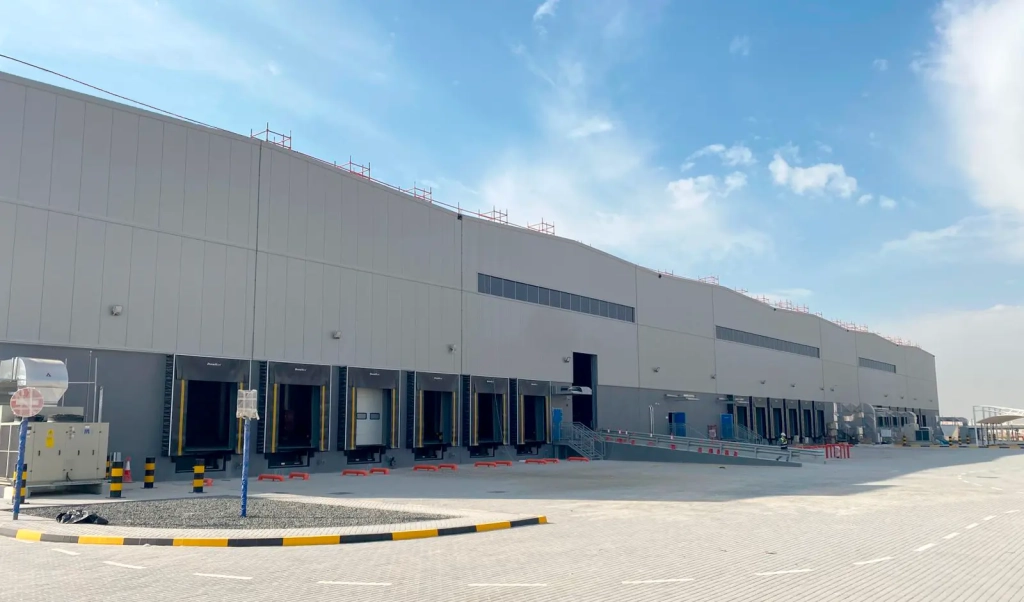

As a premier fireproofing contractor in the UAE and GCC, Ibtikar Fireproofing successfully executed crucial fireproofing for the MSM Logistic Warehouse at Abu Dhabi Airports. Our specialized team applied Nullifire SC 802 & Nullifire 804 to protect 13,000 square meters of Steel Structure in April 2024, completed with a Carbothane 137HS top coat. This project highlights our expertise in critical aviation infrastructure.

Project Highlights:

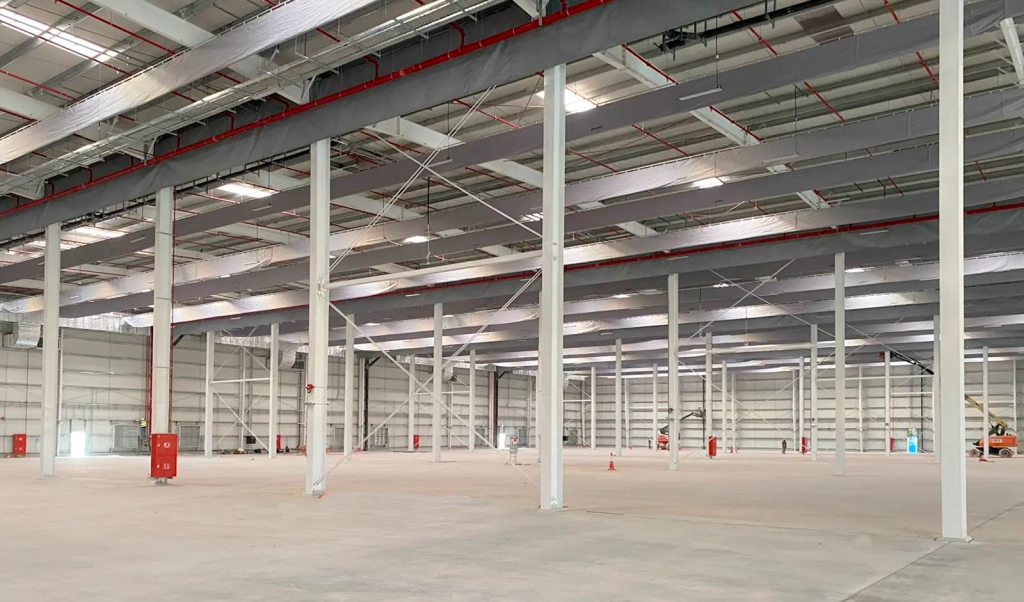

  • Successfully fireproofed 13,000 square meters of steel structure at a major airport logistics hub.
  • Implemented high-performance Nullifire SC 802 & 804 for robust fire resistance.
  • Applied Carbothane 137HS as a durable top coat for enhanced protection.
  • Ensured vital safety compliance for airport-related facilities.
SC802 Nullifire

Fire Proofing Materiel:

Nullifire SC802 Intumescent Steel Coating

SC802 Nullifire

Nullifire SC802 Intumescent steel coating is a very low VOC, borate free, APEO free, water based, thin film intumescent coating for the protection of structural steelwork. SC802 contains no substances of very high concern.

  • Water based intumescent coating suitable for internal use on structural steelwork for up to 60 minutes fire resistance.
  • “Next generation” product – with greater efficiency on site.
  • Compatible with a full range of Nullifire primers and Topcoats.
  • Very low VOC.
  • Optifire®+ unique traceability identifier.
  • Certifire CF5420.

  • Nullifire SC802 provides up to 60 minutes fire resistance to ‘I’ section beams, columns, hollow section columns and cellular beams. Limited 90-minute protection is also available. SC802 can be used on steel, cast iron and galvanised steel.

    Detailed application instructions are available for SC600, SC800 and SC900 series that must be consulted prior to commencing application.

    Safety data sheet must be read and understood before use.

  • Nullifire – Passive Fire Protection Solutions Including Fire Stopping Products and Intumescent Steel Coatings.

SC804 Nullifire

Fire Proofing Materiel:

Nullifire SC804 Intumescent Steel Coating

SC804 Nullifire

Nullifire SC804 Intumescent steel coating is a very low VOC, borate free, APEO free, water-based, thin film intumescent coating for the protection of structural steelwork. SC804 contains no substances of very high concern.

  • Ultra Low VOC.
  • Competitive loadings.
  • Compatible with a wide range of primers and topcoats.
  • Easy to apply, with excellent aesthetics.
  • Optifire®+ unique traceability identifier.
  • Certifire CF5929.
  • 3 months without topcoat once fully dried (see Environmental Resistance section)

  • Nullifire SC804 is optimised to provide 90 minutes fire resistance to ‘I’ section beams and columns, hollow columns, hollow beams, cellular beams, concrete filled hollow columns and solid steel tension rods. Limited 120 minutes protection is also available. SC804 can be used on steel, cast iron and galvanised steel.

    Detailed application instructions are available for SC600, SC800 and SC900 series that must be consulted prior to commencing application.

    Safety data sheet must be read and understood before use.

  • Nullifire – Passive Fire Protection Solutions Including Fire Stopping Products and Intumescent Steel Coatings.

Fire Proofing Materiel:

Carbothane 137HS

Carbothane 137 HS is a fast-drying, high build, two component polyurethane coating which exhibits excellent dry times and handling characteristics required by Original Equipment Manufacturers. Has excellent UV resistance and good corrosion resistance in direct to metal applications for C1 to C3 environments, over primers for C4 to C5 environments.

  • Fast-drying formulation
  • High build polyurethane coating
  • Two-component system
  • Excellent dry times and handling
  • Ideal for OEM (Original Equipment Manufacturer) applications

  • Nullifire – Passive Fire Protection Solutions Including Fire Stopping Products and Intumescent Steel Coatings.

Fireproofing Spray Application

On-Site Project Demo

1,200

Hours of Work

September 2024

Project Date

22,000 Sq m

Surface Area

Steel Structure

Apply on

Nullifire SC802

Material

Nullifire SC804

Material
